Side Channel Pumps

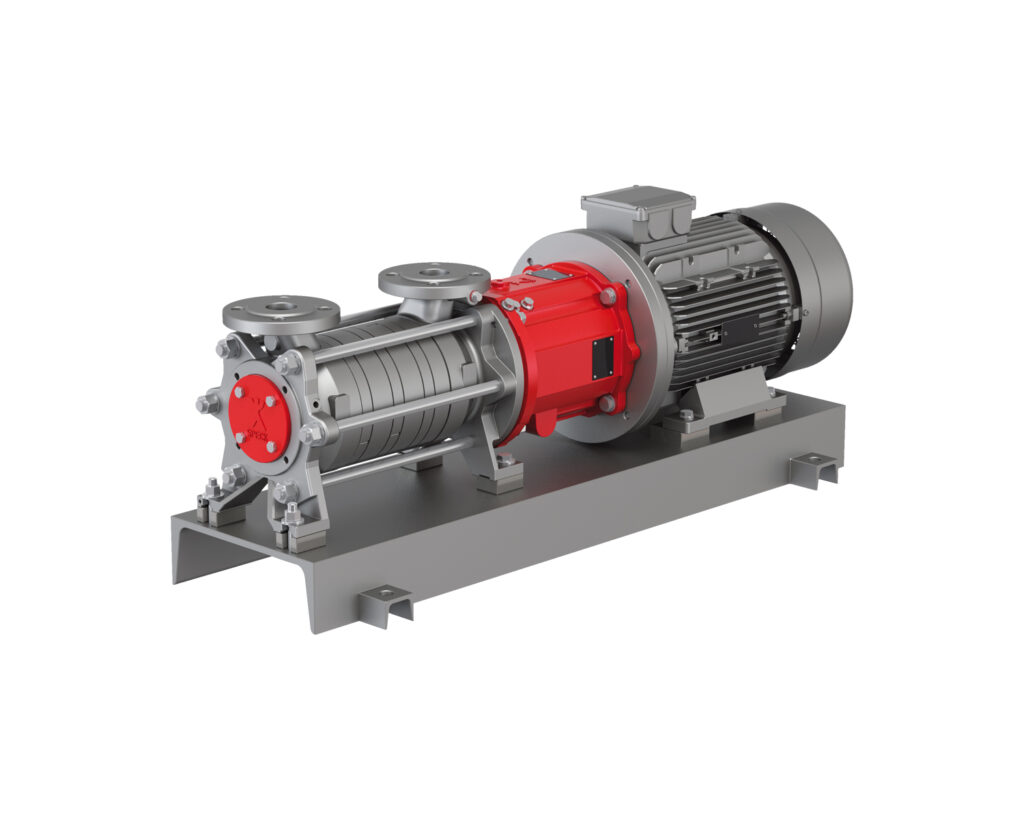

Speck Side Channel Pump
Side Channel Pump SKM-4003

Side channel pumps are low pulsation pumps ideal for high pressure, liquefied gasses, and self-priming.

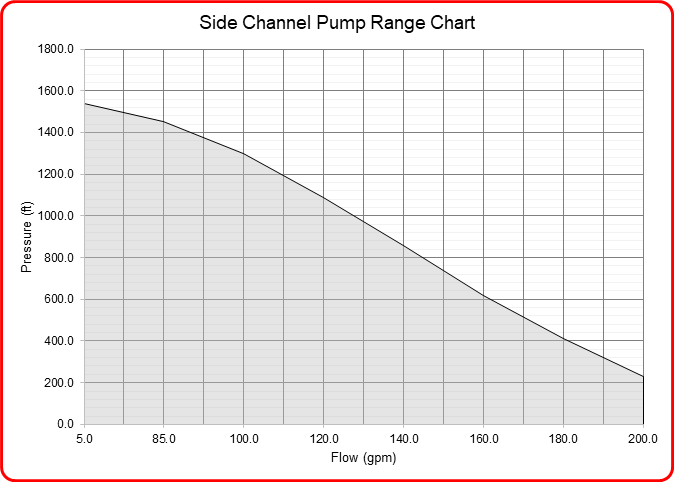

  • Differential pressure to ??
  • Flow ranges from ?? to 185 gpm

Features

Side channel pump features include

  • Basic housing materials: bronze or ductile iron
  • Close coupled and base plate mount models
  • Magnetic drive or mechanical seal
  • Viscosity range 0.2  to 1000 cP
  • Temperature to 660° F (hot oil transfer)
  • Single and multi-stage
  • NPSH inducer stage (for operating at temperatures close to boiling point or low suction head)
  • Stainless steel or ceramic (minimal eddy current losses)
  • Motors: Standard NEMA, ISO or special OEM
  • ATEX II 2GD IIC cb TX

Applications

Sample Applications

  • Transfer of LP gasses
  • Circulation of hot water in boiler systems
  • Delivery of salt water and fresh water in ships
  • Recovery of condensates (water)
  • Hot oil transfer pump
  • Extraction of palm-oil and similar oils

Pump Types

TYPE

Type

Type

speck-contact-us

Pump Types

Close-coupled with mechanical seal

  • Designs in copper alloy, stainless steel and high-quality plastic
  • Water up to 140 °C / Oil up to 180 °C
  • ATEX II 2GD IIC cb TX

Close-coupled with magnetic coupling

  • Designs in stainless steel, spheroidal graphite cast iron, copper alloy, and high-quality plastic
  • Water up to 180 °C / Oil up to 200 °C
  • ATEX II 2GD IIC cb TX (except for EY-MK)

Sealless Vertical

  • Vertical single-stage or multi-stage pumps in stainless steel, copper alloy
  • Water up to 90 °C / Oil up to 150 °C, up to 200 °C upon request

Close-coupled with EC motor

  • Designs in brass, stainless steel and high-quality plastic
  • Water up to 95 °C / Oil up to 90 °C

Close-coupled with canned motor
